Using Safety Flanges Is A Must!!!

Go down

Using Safety Flanges Is A Must!!! Empty Using Safety Flanges Is A Must!!!

Post  BuschShineProducts on Tue Mar 31, 2009 11:43 am

Using Safety Flanges Is A Must!!! With_o11
This show how the pad material has separated from the clinch ring. This was caused from not using Busch Safety Flanges. The money savings is not worth the damaged caused! It is likely this person was injured as well.



Using Safety Flanges Is A Must!!! Zoom_o10
This is a close up of the center.




Using Safety Flanges Is A Must!!! With_f10
This picture shows an airway pad that was properly used with Busch Safety Flanges. The clinch ring is held fast with the pad material. The metal plate that comes with the airway pad is for centering only.




**Welding center plate to clinch ring will not keep the clinch ring from separating from the pad material.**





Using Safety Flanges Is A Must!!! Flange10
Use the flanges, one goes on each side.



Using Safety Flanges Is A Must!!! 60054g10

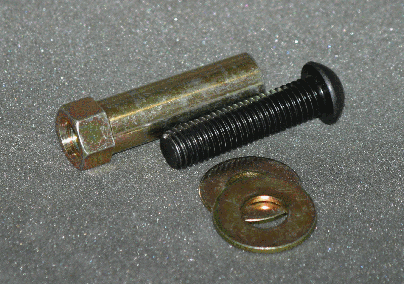

With the adapter.



Using Safety Flanges Is A Must!!! Airway10

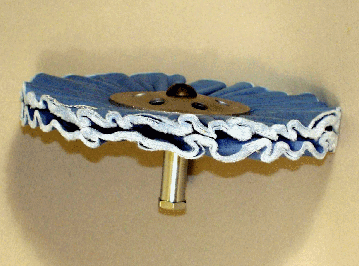

This is how it should look once you have it together.

_________________
Thanks BuschShineProducts

Visit our website at www.BuschShineProducts.com
